Future Veeam Backup Infrastructure:

So we need to add the following:

In my Veeam Server I have(physical server):

1 interface(is 2 with NIC Teaming) for 192.168.6.x for Management Network.

1 Interface(also 2 with NIC Teaming) for 192.168.27.x using iSCSI initiator for the iSCSI connections.

Add: 1 Interface with 192.168.23.x for NSF connections

Veeam Proxy(Virtual Machine):

1 interface with 192.168.68.x for Management Network.

Add: 1 Interface with 192.100.27.x using iSCSI initiator for the iSCSI connections.

Add: 1 Interface with 192.168.23.x for NFS connections

All new interfaces were proper configured to the right vLANs.

Note: All NFS interfaces subnets, or IPs(from Veeam Server and Veeam Proxy), need to have read and write permissions in the Storage NFS Share. So that Veeam and Storage can communicate through NFS.

After these changes we need to set up Veeam so that can use the proper transport mode.

Main configurations that we should check and config:

• Make sure you are on Veeam v9
• Make each Veeam VMware Backup Proxy have communication on the NFS network
• Ensure the NFS Storage are allowing those proxies read and write permissions to the NFS share
• Set the Proxies to use “Automatic Selection” transport

Limitations for the Direct NFS Access Mode

1. Veeam Backup & Replication cannot parse delta disks in the Direct NFS access mode. For this reason, the Direct NFS access mode has the following limitations:

• The Direct NFS access mode cannot be used for VMs that have at least one snapshot.

• Veeam Backup & Replication uses the Direct NFS transport mode to read and write VM data only during the first session of the replication job. During subsequent replication job sessions, the VM replica will already have one or more snapshots. For this reason, Veeam Backup & Replication will use another transport mode to write VM data to the datastore on the target side. The source side proxy will keep reading VM data from the source datastore in the Direct NFS transport mode.

2. If you enable the Enable VMware tools quiescence option in the job settings, Veeam Backup & Replication will not use the Direct NFS transport mode to process running Microsoft Windows VMs that have VMware Tools installed.

3. If a VM has some disks that cannot be processed in the Direct NFS access mode, Veeam Backup & Replication processes these VM disks in the Network transport mode.

The Direct NFS Access feature is implemented automatically if the “Direct storage access” or “Automatic selection” transport mode is selected from a VMware Backup Proxy inside of the Veeam Backup & Replication user interface.

First we need to Setup our Proxies(Default Veeam Proxy and the new Veeam Proxy created) to run with the proper mode.

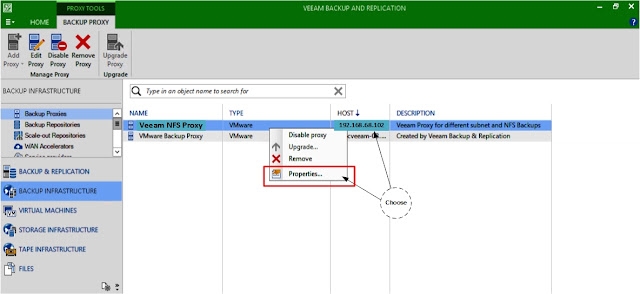

Go to Proxies and right mouse and choose properties:

After choosing the Proxy, lets check the Transport Mode and choose the right one.

We should choose Automatic Selection. Then the Proxy will choose the right Transport Mode to perform the Backup. If NFS Access is set, Transport Mode will use it in the VMs that are in NFS Share Volumes.

Option 3: Even Failover to Network mode is enable by default, you should check if is enabled. This will prevent the Backup Jobs to fail. If a Transport Mode is not available, Veeam will use the Network Mode(more slow performance).

We should perform all the above tasks for all our Proxies.(even the Default called VMware Backup Proxy)

After we change the Transport Mode in the Proxies section we now need to change in the Backup Jobs the Proxy that will use.

We should choose also in the job configuration the Automatic Selection(Veeam will choose the best Proxy for the Backup and NFS Direct).

If not all your Proxies have access to the Storage NFS, then you should follow the options 1-1 and 1-2 in the image above. Choose the Proxy that have connection and permissions in the Storage NFS and this job will always run with this Proxy.

Direct NFS Access will be enabled in all type of jobs, this example uses NetApp storage – and Enterprise Plus installations can use Backup from Storage snapshots for NetApp storage, all other editions can use Direct NFS Access.

Note: Next article we will talk about Veeam Backup from Storage snapshots for NetApp storage

We can check if backup is running with Direct NFS Access in the job log.

These are the Transport Modes that we can see in you Backup Job log.

[nfs] – Direct NFS Access mode.

[san] – iSCSI and Fibre Channel Mode(which doesn’t work with virtual disks on NFS storage).

[nbd] – Network Block Device Mode(or just network, the same option we choose in the failover).

[hotadd] – Virtual Appliance Mode.

Note: All these Transport Mode will show in the Job Log after each Virtual Disk Backup.

This is the final design for Veeam Direct NFS Access backup transport mechanism flow.

Performance improvements that we will have with this new configuration:

The Direct NFS Access will deliver a significant improvement in terms of Read and Write I/O for the relevant job types, so definitely consider using it for your jobs. This improvement will help in a number of areas:

• Significantly reduce the amount of time a VMware snapshot is open during a backup or replication job (especially the first run of a job or an active full backup)

• Reduce the amount of time a job requires for extra steps (in particular the sequence of events for HotAdd) to mount and dismount the proxy disks

• Increase I/O throughput on all job types

FINAL NOTE: I will like to thank to Rick Vanover from Veeam, for all the help and support to implement this Veeam Direct NFS Access. But also in some ideas to write this article(I even use some of is explanations). For all that, thanks again Rick

Hope this help you improve your Veeam Backup Infrastructure when using NFS.

Note: Share this article, if you think is worth sharing.
